    WATER HOSE

    WATER HOSE 4358




    Part I.D. Wall Thickness Rein. Max W.P. Weight Min.Bend Rad
    Number in. mm. in. mm. Braid PSI BAR ib./ft KG/m in. mm
    4358 1-1/2 38.10 0.091 2.29 n/a 250 17.24 0.26 0.39 n/a n/a
    2 50.80 0.109 2.77 n/a 250 17.24 0.34 0.51 n/a n/a
    2-1/2 63.50 0.109 2.77 n/a 250 17.24 0.47 0.70 n/a n/a
    3 76.20 0.114 2.90 n/a 250 17.24 0.65 0.97 n/a n/a
    4 102.40 0.114 2.90 n/a 250 17.24 0.83 1.24 n/a n/a
    Feb-85 1-1/2 38.10 0.091 2.29 n/a 250 17.24 0.26 0.39 n/a n/a
    2 50.80 0.109 2.77 n/a 250 17.24 0.34 0.51 n/a n/a
    2-1/2 63.50 0.109 2.77 n/a 250 17.24 0.47 0.70 n/a n/a
    3 76.20 0.114 2.90 n/a 250 17.24 0.65 0.97 n/a n/a
    4 102.40 0.114 2.90 n/a 250 17.24 0.83 1.24 n/a n/a
    TUBE:
    NBR/PVC
    REINFORCEMENT:N/A

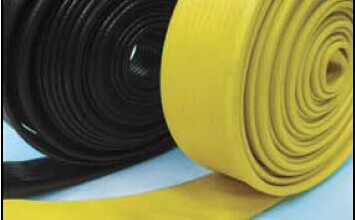

    COVER:NBR/PVC,ribbed, yellow or black
    BRANDING:None
    TEMPERATURE RANGE: -20°F(-29°C)to+210°F(+99°C)
    FEATURES:Oil resistant tube and cover.resists heat and cold,abrashion,ozone and UV.This is lightweight and flexible.
    APPLICATION:For use in industrial washdown,irrigation,general dewatering,pump discharge and drainage.
    STANDARD LENGTHS: 100 ft, or 50 ft. longer lengths
                           Available upon request
